Fonts from old ROMs with Python

- 7 mins

This post is also available as an IPython notebook which may be downloaded or viewed online.

Introduction

For a personal project recently I needed a simple monospaced 8x8 pixel font. I could, of course, make my own but I thought it’d be nice for nostalgia reasons to try and extract the Acorn 8x8 font used in the old BBC Microcomputer. Using Python we can directly extract the font from a zipfile containing a ROM image which we download from the web. We can then use the imgur API to upload the resulting font directly to the web.

Implementation

You can find a copy of the BBC Model B memory map online. The relevant section for our needs is:

PAGE 192 (&C0) to 194 (&C2) : OS ROM

C000-C2FF Character font lookup table

This tells us that the character font table is in the first 0x300 (or 768) bytes of the OS ROM. The OS ROMs are available from multiple sources but there is a page on a BBC Micro games site which has a link.

OS_ROM_URL = 'http://www.bbcmicrogames.com/roms/os12.zip'

This is a zip file and so we can use the Python zipfile module to examine the file after downloading it into a bytes object via the requests library:

import requests         # downloading the zipfile
from io import BytesIO  # treating a bytes object as file
import zipfile          # parsing the zipfile
# Fetch the ROM and check that the GET succeeded
os_rom_zip_req = requests.get(OS_ROM_URL)
assert os_rom_zip_req.status_code == 200
# Parse the body as a zip file
os_rom_zip = zipfile.ZipFile(BytesIO(os_rom_zip_req.content))

There should only be one file in the archive which is the one we want:

print('Archive contents: ' + ','.join(os_rom_zip.namelist()))
assert len(os_rom_zip.filelist) == 1
Archive contents: OS12.ROM

So, we want to get the first 0x300 bytes:

font_table = os_rom_zip.read(os_rom_zip.filelist[0])[:0x300]

We can use the bitarray module along with numpy to extract the character font as a 1-bit array. The characters are stored as one byte per row and so our final font array should be 8 columns wide and 8 × number of characters high.

import numpy as np
from bitarray import bitarray
font_table_array = bitarray(endian='big')
font_table_array.frombytes(font_table)
font = np.array(font_table_array.tolist()).reshape((-1, 8))

n_chars = font.shape[0] // 8
print('Number of characters: {0}'.format(n_chars))
Number of characters: 96

Let’s look at the first few characters just to check:

%matplotlib inline
from matplotlib.pyplot import *

imshow(font[:8*3, :], interpolation='none', cmap='gray')
<matplotlib.image.AxesImage at 0x7f344fc0db38>

png

It would be nice to see the entire font as one image. Let’s first split it into one array per character:

char_arrays = np.split(font, n_chars)

# check that we've split correctly
imshow(char_arrays[20], interpolation='none', cmap='gray')
<matplotlib.image.AxesImage at 0x7f344fbebd68>

png

Now we do some advanced juggling to reshape the character array:

font_image = np.vstack(tuple(
    np.hstack(row).reshape((8, -1)) for row in np.array(char_arrays).reshape((-1, 16, 8, 8))
))

print('Generated font image of shape: ' + 'x'.join(str(x) for x in font_image.shape))

imshow(font_image, cmap='gray', interpolation='none')
Generated font image of shape: 48x128





<matplotlib.image.AxesImage at 0x7f344fb65208>

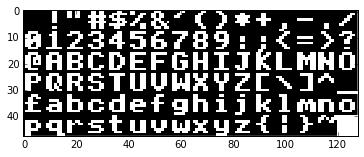

png

And we’re a winner. The only thing left to do is to save it as an image for some further processing. We’ll use the imgurpython library to upload our result directly to imgur. I’ve created a file called imgur-credentials.json containing the client id and secret I obtained by registering an application at https://api.imgur.com/. The file looks something like this:

{
    "clientId": "some magic hex string",
    "clientSecret": "another magic hex string"
}

The first thing to do is to create an imgur client to upload the file:

import json
from imgurpython import ImgurClient

imgur_creds = json.load(open('imgur-credentials.json'))
imgur_client = ImgurClient(imgur_creds['clientId'], imgur_creds['clientSecret'])

Using the pillow library we can save the image to a temporary file and the upload it. Note the use of the with statement to make sure that the temporary file is deleted.

import tempfile
from PIL import Image

with tempfile.NamedTemporaryFile(suffix='.png') as tf:
    Image.fromarray(np.where(font_image, 255, 0).astype(np.uint8)).save(tf.name)
    upload_result = imgur_client.upload_from_path(tf.name)
print('Image uploaded to: {0}'.format(upload_result['link']))
Image uploaded to: http://i.imgur.com/7mZVBee.png

IPython has some built-in support for displaying images from URLs. Let’s use that to look at the result:

from IPython.display import Image
Image(upload_result['link'])

png

Conclusion

This little post has shown how we can extract fonts directly from old microcomputer ROM images with Python. As a bonus, we upload the resulting font back to the web via the imgur API.


Rich Wareham

Rich Wareham

You know, programming is fun!
